Whisper BC Supreme 12 V – 40 A Battery Charger

Whisper BC Supreme 12 V – 40 A Battery Charger
For a fast and reliable charge of your batteries. Extends battery life time.

Multiple outputs to charge 3 batteries. Auto ranging input from 90 - 260 VAC, 50 / 60 Hz
Fully automatic 3-stage charge method. Temperature sensor plus cable included. Adjustable for GEL, AGM or Lithium flooded lead acid. Connectable to any AC generator
Fully protected against short circuit, overtemperature, etc

ARTICLE NUMBER 61112304 BC Supreme 12 V - 40 A


DIMENSIONS & WEIGHT

• Weight 2.6 Kg , 5.7 lb.
• Dimensions 295 x 206 x 86 mm, 11.6 x 8.1 x 3.4 inches

TECHNICAL SPECIFICATIONS

• Output Current (Maximum) 40 A
• Output Voltage Charge 14.2 - 15.5 V
• Output Voltage Float 13.4 - 13.8 V
• Output Voltage Equalize 16.0 V
• Charging Control 3-step (Bulk / Absorption / Float)
• DC Output Bank 3
• Selectable Battery Type GEL, AGM, WET, Lithium
• Parasitic Current < 2 mA

CHARGER INPUTAC

• Input Voltage (Nominal) 100, 120, 220, 230, 240 VAC
• AC Input Operating Range 90 - 265 VAC
• AC Input Frequency Range 47 - 63 Hz
• Power Consumption (Full Load) 700 W
• Power Factor Correction Yes
• Charger Efficiency > 82%

PROTECTION AND FEATURES

• Reverse Battery Yes, unit shutdown
• Over Charge Yes, unit shutdown
• Over Heating Yes, unit de-rated and shutdown
• Output Short Circuit Yes, unit shutdown
• Cooling Forced air ventilation
• Temperature Setting Hot, Normal, Cold (no sensor connected)

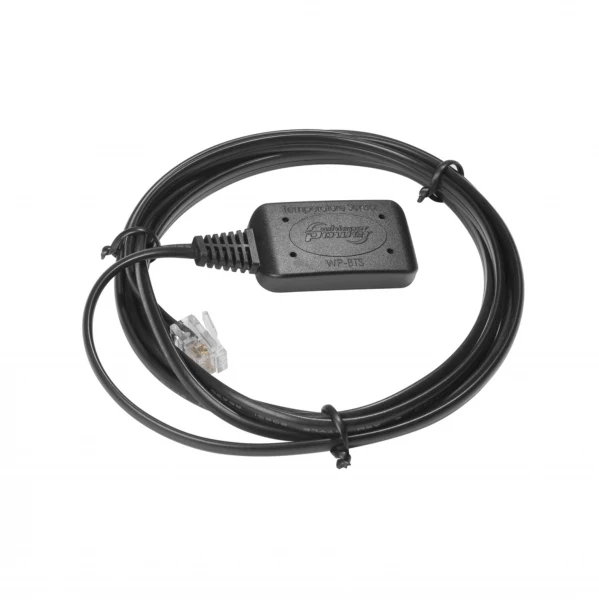

• Battery Temperature Sensor Yes included with 1.5 mtr cable
• Battery Temperature Sensor Port RJ12 (battery temp. sensor use)
• Digital Display Port RJ12 (optional display panel use)

DISPLAY

• LCD Display (with back lighting) Charging status, Battery Voltage
• Warning and Fault Code A01-02, E01-09
• AC INPUT AND DC OUTPUT CONNECTION
• AC Input Connection Hardwire or AC Cord
• DC Output Connection Heavy Duty Studs (3 banks)
• DC Output Ground Single Heavy Duty Common Ground Stud

ENVIRONMENTAL AND OPERATINGTEMPERATURE

• Storage Range -40° to 70°C
• Operating Range -20° to 60°C
• Humidity 5-95%, RH non-condensing
• Ingress Protection IP32
