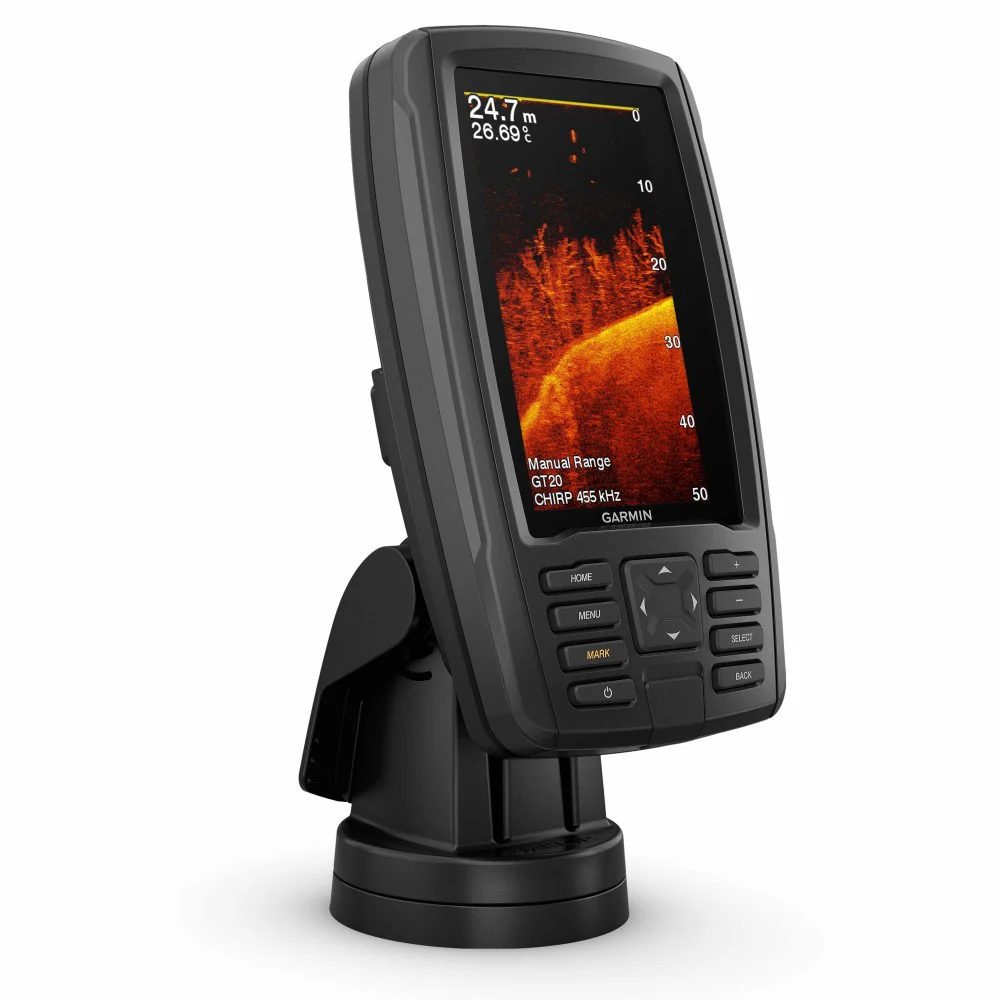

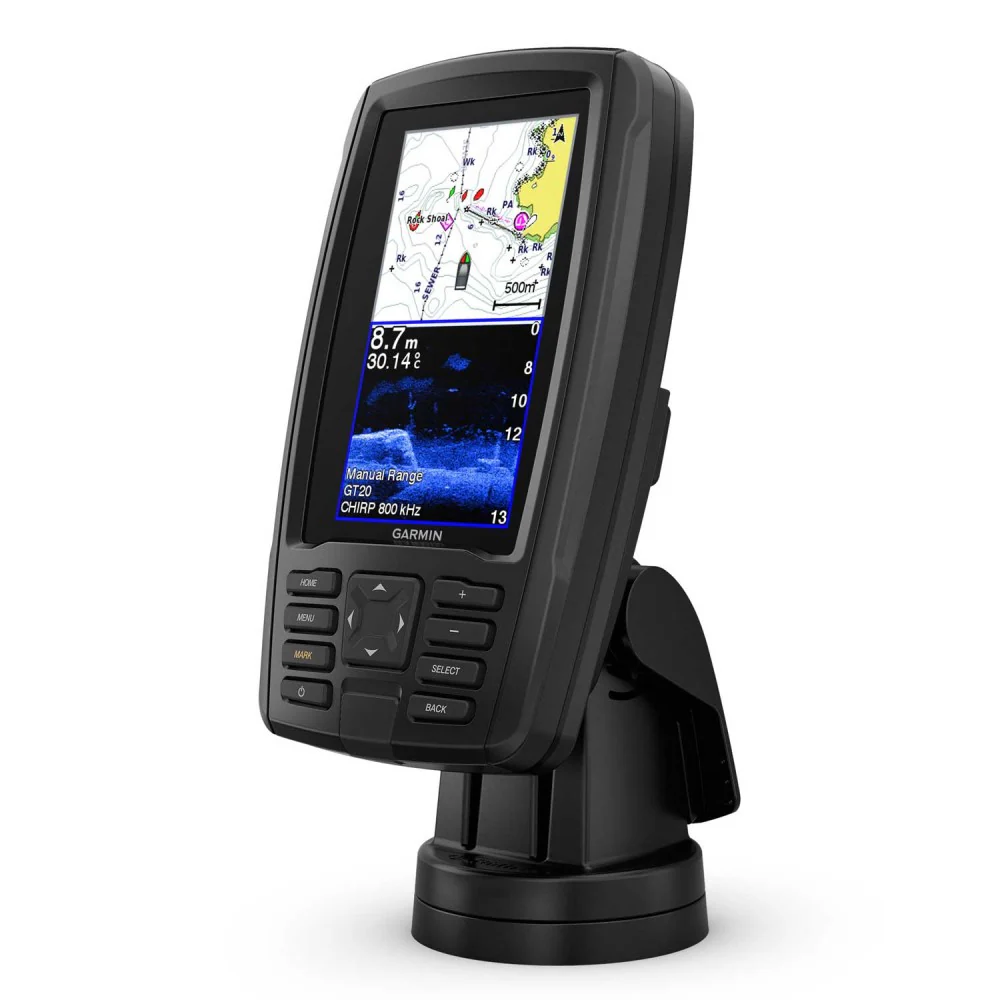

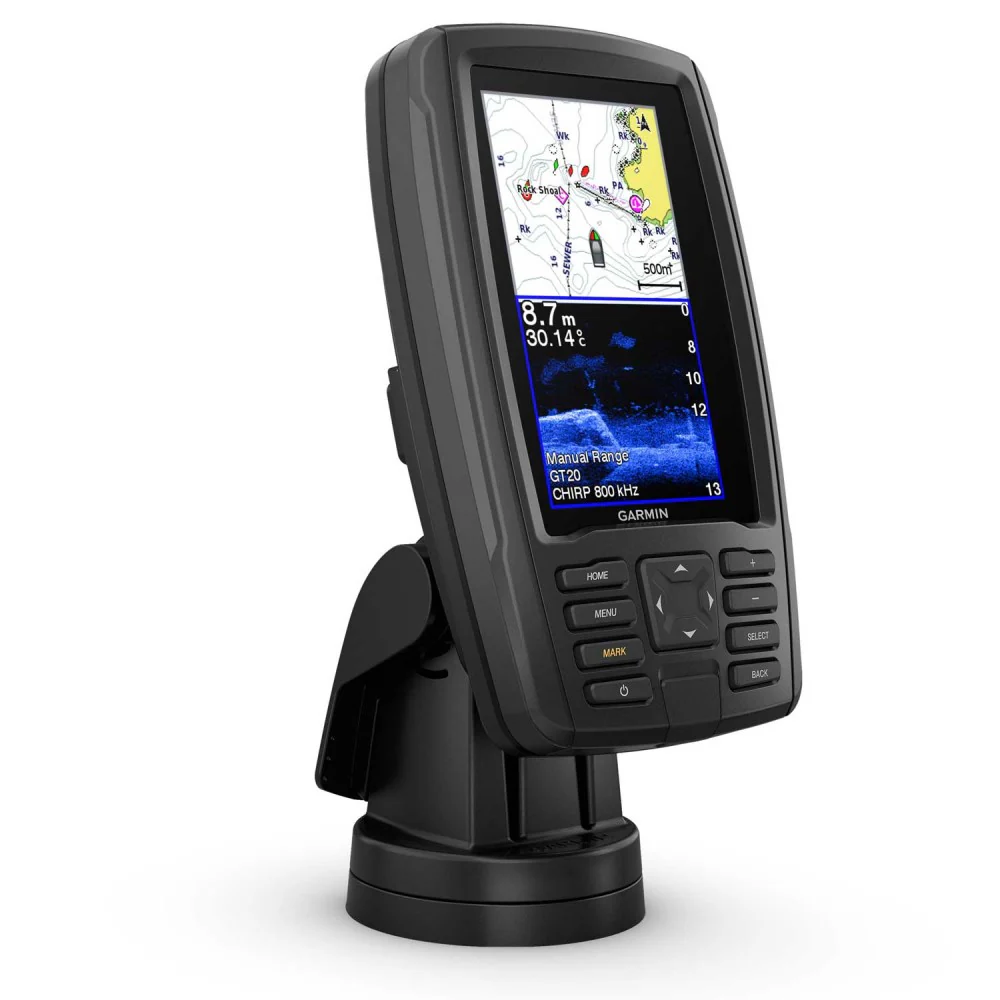

Garmin Echomap Plus 45cv Chirp 010-01887-10

The ECHOMAP™ Plus 45cv combo is a great addition to any fishing or boating trip and has lots of built-in benefits. It features a 4.3” display with support for crisp, clear Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar. It comes preloaded with BlueChart® g2 charts for the United Kingdom, Ireland and Northwest mainland Europe coast. Plus, it has Quickdraw Contours mapping software to instantly create personalized fishing charts on-screen with 1’ contours as you fish. You own these charts; they’re yours to keep private or share with the Garmin Quickdraw™ Community on Garmin Connect™. Plus, you can share waypoints and routes with other ECHOMAP or STRIKER™ devices. The quick-release mount makes the combo easy to remove and take with you.

• Bright, sunlight-readable 4.3” display
• Support for crisp, clear Garmin CHIRP traditional sonar for remarkable target separation; CHIRP ClearVü scanning sonar for nearly photographic images of what’s below the boat
• Preloaded with BlueChart® g2 charts for the United Kingdom, Ireland and Northwest mainland Europe coast
• Built-in Quickdraw Contours mapping software instantly creates personalized fishing charts on-screen with 1’ contours as you fish
• Share waypoints and routes with other ECHOMAP™ or STRIKER™ devices
• Quick-release mount for fast and easy mobility
• Garmin sonar compatible
• Supports AIS and DSC

Echomap 45 CV Technical Specifications

• Phisical Dimensions 10.2 x 20.4 x 0.4cm
• Display Size: 5.4 x 9.5 x 10.5cm diagonal
• Display Resolution: 480 x 720 pixels
• Display Type: WQVGA display
• Weight: 0.7Kg
• Water Rating: IPX7
• Power Consumption: 5W
• Antenna: Internal or external over NMEA 0183
• Mounting Options: Ball of flush mount
• Receiver: 5 Hz

Maps and Memory

• Preloaded maps: BlueChart g2 charts for UK, Ireland and NW Mainland Europe Coast
• 1 x microSD cardl 32GB Max Card Size
• 5000 Waypoints
• 100 Routes
• Track log: 50.000; 50 saved tracks

Sonar Features and Specifications

• Dual-frequency (50/200 kHz) sonar capable
• Dual-beam (77/200 kHz) sonar capable
• Transmit power: 500 W (RMS) / 4000 W (peak to peak)
• Built-in CHIRP Technology
• Water temperature log and graph
• Sonar recording
• Sonar history rewind

Connections

• 4 x Transducer pin numbers
• NMEA 0183 Input Ports x 1
• NMEA 0183 Output Ports x1

What's In The Box?

• Echomap Plus 4cv with Bluechart g2 for UK, Ireland and NW Mainland Europe Coast
• Power/data cable
• 4-pin sounder to 8-pin transducer adapter cable
• Tilt/swivel mount with quick release cradle
• Documentation
