Harken 20 Winch - Self Tailing Single Speed Chrome 20STC

Harken 20STC Winch is one of the most popular winches found on small boats and yachts. Preferred by sailors who are looking for strength and durability in a small package, the 20 STC chrome radial winches use composite bushing to handle high loads.

Unlike the aluminium winches, this radial self tailing chrome winches have a more slippery finish, therefore the ribs are spaced closer together to increase friction. This optimizes your grip for trimming as well as for easing the sail in a smooth, controlled manner, even by one crew member.

The Harken chrome radial winch provides a maximum holding power and greatly reduce line wear due to the nonabrasive diagonal ribs.  In order to maximize gripping power each winch, depending on size, features different spaced diagonal ribs on the radial winch drum.

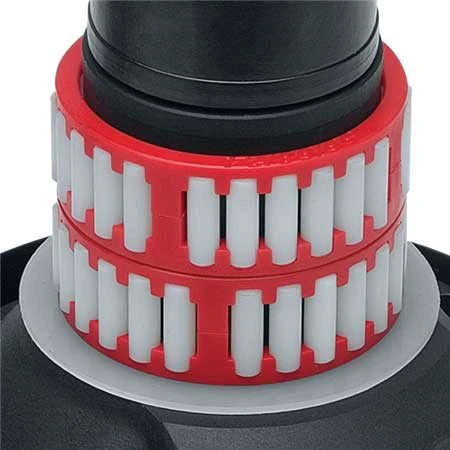

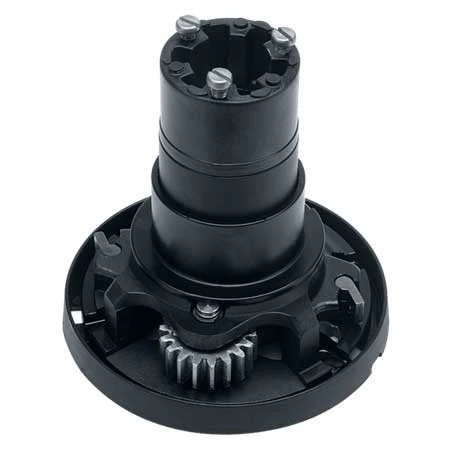

Simple and easy to maintain this Harken 20 stc winch can be a great addition to your boat. The patented mounting system makes it fast and easy for one single person installation without the need to remove the drum. The snap-fit design keeps all bearings in place when you need to remove the drum for maintenance. The composite roller bearings don’t require lubrication therefore Harken provides us with another great reason to recommend this Harken winch as a fast and easy to maintain self tailing winch option.

• Drum diameter 2 7/8 in (73mm)
• Base 5 3/8 in (137mm)
• Height 5 13/16 in (148mm)
• Weight 7.5 lb (3.4kg)
• Line entry height 2 3/8 in (61mm)
• Line diameter min 1/4 in (6mm) max ½ in (12mm)
• Fastener circle 4 3/8 in (110mm)
• Fastener 6 HH, 6 SH mm
• Gear Ratio 1 - 2.76
• Power Ratio 1 - 19.20
• Configuration - Self Tailing - Manual
• Finish - Chrome
