Harken 50 Winch - 2 Speed Self Tailing 50.2STA
The 50.2STA winch from Harken offers a great performance when under load. This self-tailing two speed winch is both strong and durable and can be operated with ease even by a single crew member. Usually found on yachts needing for power and excellent maneuverability in a small package.

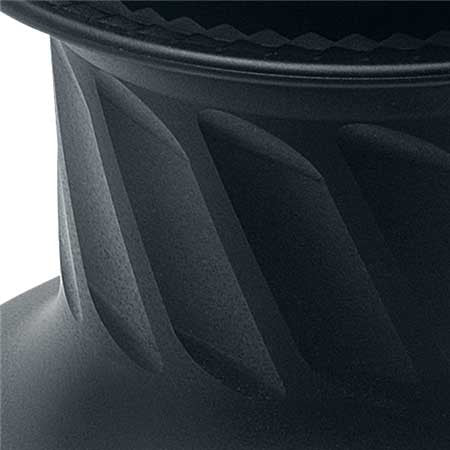

A revolution in sailing winches, the Harken 50 winch drum is specially designed in order to reduce the line wear due to the diagonal ribs which offer maximum holding power with minimum line wear.
When easing, the angle of the ribs stops line from rising, preventing overrides and gives a smooth, controlled release as the line exits the winch. This Harken 50.2 STA aluminium winches are both high-strength and lightweight saving between 25 to 50 percent on weight compared to other Harken classic winch lines due to the composite self-tailing jaws and skirt.
Adjustable stripper arm moulded into the winch top, covers the winch entirely, providing a safer operation and preventing fingers and clothing from catching in moving parts and it can easily be adjusted to various positions to optimize the line exit.

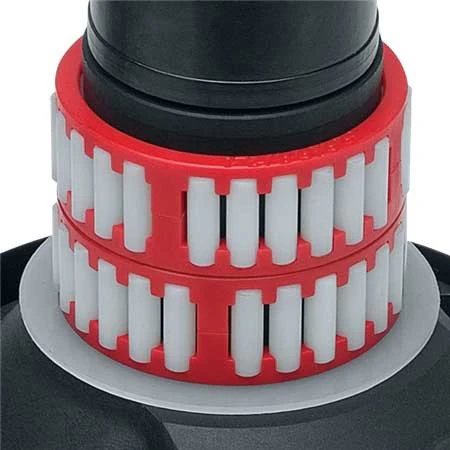

The Composite roller bearings of this Harken 50 dual speed winch reduces the friction when under load and don’t require lubrication. The load-carrying gears and pins are 17-4 PH made of stainless steel for added strength and corrosion resistance.
Harken 50.2 STA Aluminium Self Tailing Winch - 2 Speed Specs
- Drum diameter 4 5/16 in (110mm)
- Base 7 ⅝ in (194mm)
- Height 8 5/16 in (212mm)
- Weight 13.2 lb (6kg)
- Line entry height 3 7/8 in (97mm)
- Line diameter min 5/16 in (8mm) max 9/16 in (14mm)
- Fastener circle 4 ⅞ in (123mm)
- Fastener 8 HH, 8 SH mm
- Gear Ratio 1 - 2.40
- Gear Ratio 2 - 10.90
- Power Ratio 1 - 10.90
- Power Ratio 2 - 50.40
- Configuration - Self Tailing - Manual
- Material - Aluminium
- *Please allow up to 2 weeks lead time
