Harken 60 Winch - 2 Speed Self Tailing 60.2STA

The 60.2STA winch from Harken offers a great performance when under load. This self-tailing two-speed winch is both strong and durable and can be operated with ease even by a single crew member. Usually found on yachts needing for power and excellent manoeuvrability in a small package.

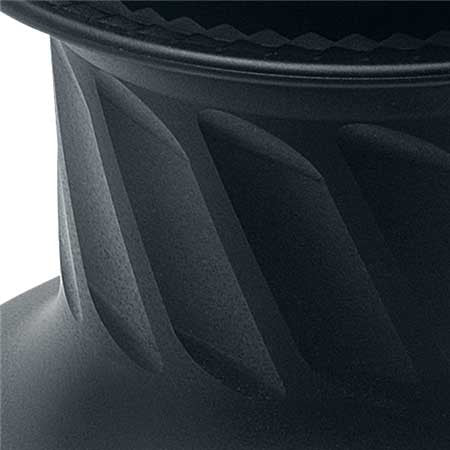

When easing, the angle of the ribs stops the line from rising, preventing overrides and giving a smooth, controlled release as the line exits the winch. These Harken 60.2 STA aluminium winches are both high-strength and lightweight saving between 25 to 50 per cent on weight compared to other Harken classic winch lines due to the composite self-tailing jaws and skirt.

Adjustable stripper arm moulded into the winch top, covers the winch entirely, providing a safer operation and preventing fingers and clothing from catching in moving parts and it can easily be adjusted to various positions to optimize the line exit.

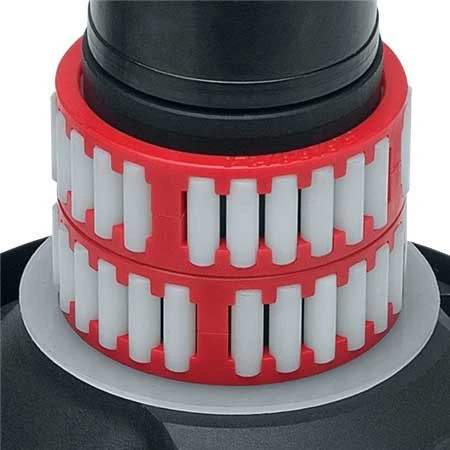

The Composite roller bearings of this Harken 60 dual-speed winch reduce friction when under load and don’t require lubrication. The load-carrying gears and pins are 17-4 PH made of stainless steel for added strength and corrosion resistance.



Harken 60.2STA Winch 2 Speed Self-Tailing Specs

• Drum diameter 4 ¾ in (120mm)
• Base 9 5/16 in (236mm)
• Height 9 11/16 in (246mm)
• Weight 22.5 lb (10.2kg)
• Line entry height 4 9/16 in (116mm)
• Line diameter min 5/16 in (8mm) max 5/8 in (16mm)
• Fastener circle 8 in (204mm)
• Fastener 8 HH, 8 SH mm
• Number of fasteners 6
• Gear Ratio 1 - 4.80
• Gear Ratio 2 - 14.40
• Power Ratio 1 - 20.30
• Power Ratio 2 - 61.00
• Configuration - Self Tailing - Manual
• Material - Aluminium

*Please allow up to 2 weeks lead time
